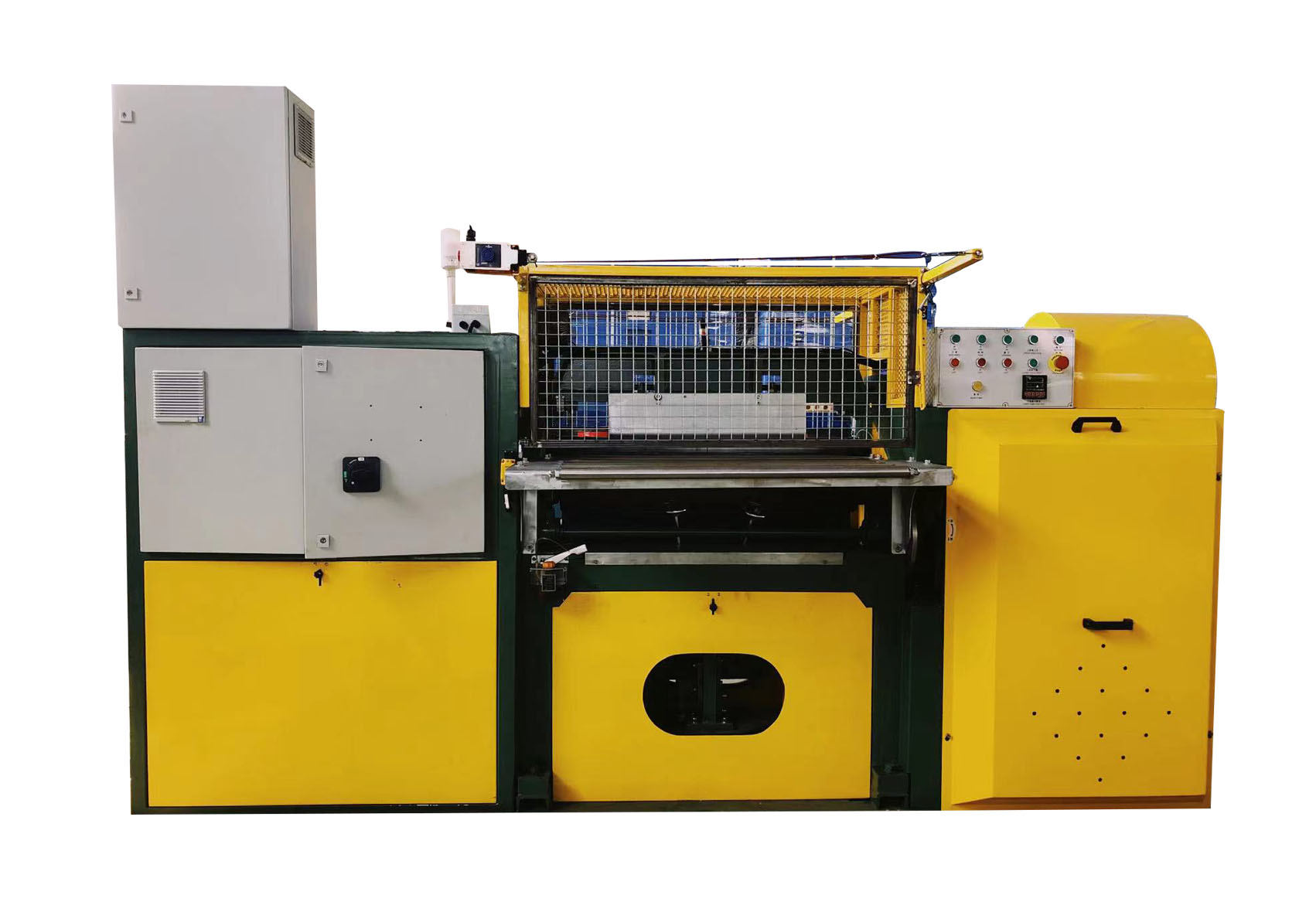

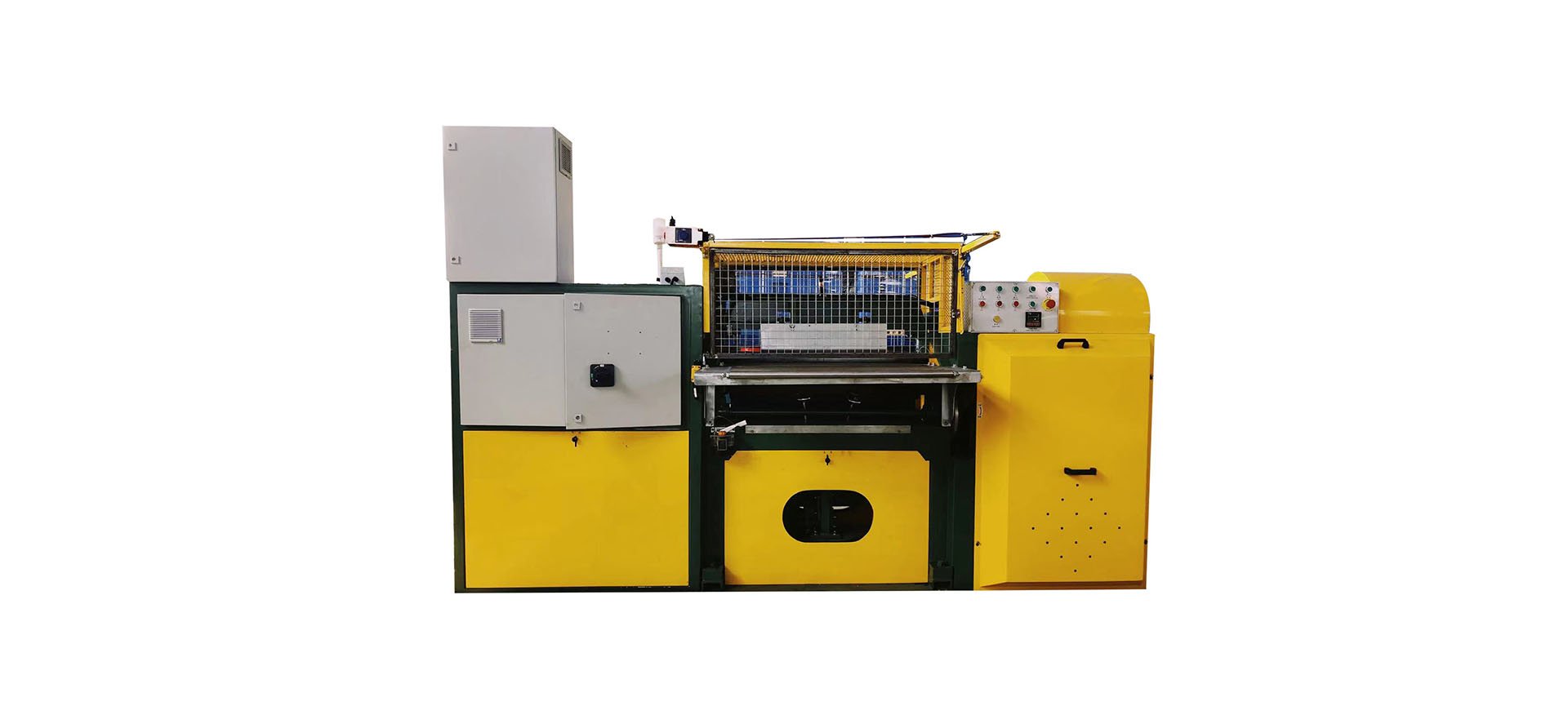

Waste Inner Rubber Splitting Machine

TM-980H Waste Inner Rubber Splitting Machine can split the thick inner rubber into the required uniform layers, keeping the original grade and quality, which is suitable for splitting the inner rubber containing butyl rubber. Each Splitting machine can replace 40 people to work. It is more safe without gasoline. The splitting machine has the following characteristics:the structure is rational, the applicability is good, degree of precision is high, it is energy-saving and efficient, and is very simple and easy to operate, very durable and convenient to maintain, etc.

We can design and produce non-standard splitting machines according to customer requirements.



Working Parameter:

Number

Item

Parameter

1

Total power:

12KW

2

Air pressure:

0.7Mpa

3

Water pressure:

<0.07Mpa

4

Feed rate:

0-10m/min

5

Feed roller diameter:

56mm

6

Size of grinding wheel:

φ80×φ20.5×50

7

Specifications of the band-knife

7180*80*1mm

8

Liner velocity of the band-knife:

7.5m/s

9

Total weight:

3.2T

10

Noise:

<85db(A)

11

Size:

3500*1200*2000mm
