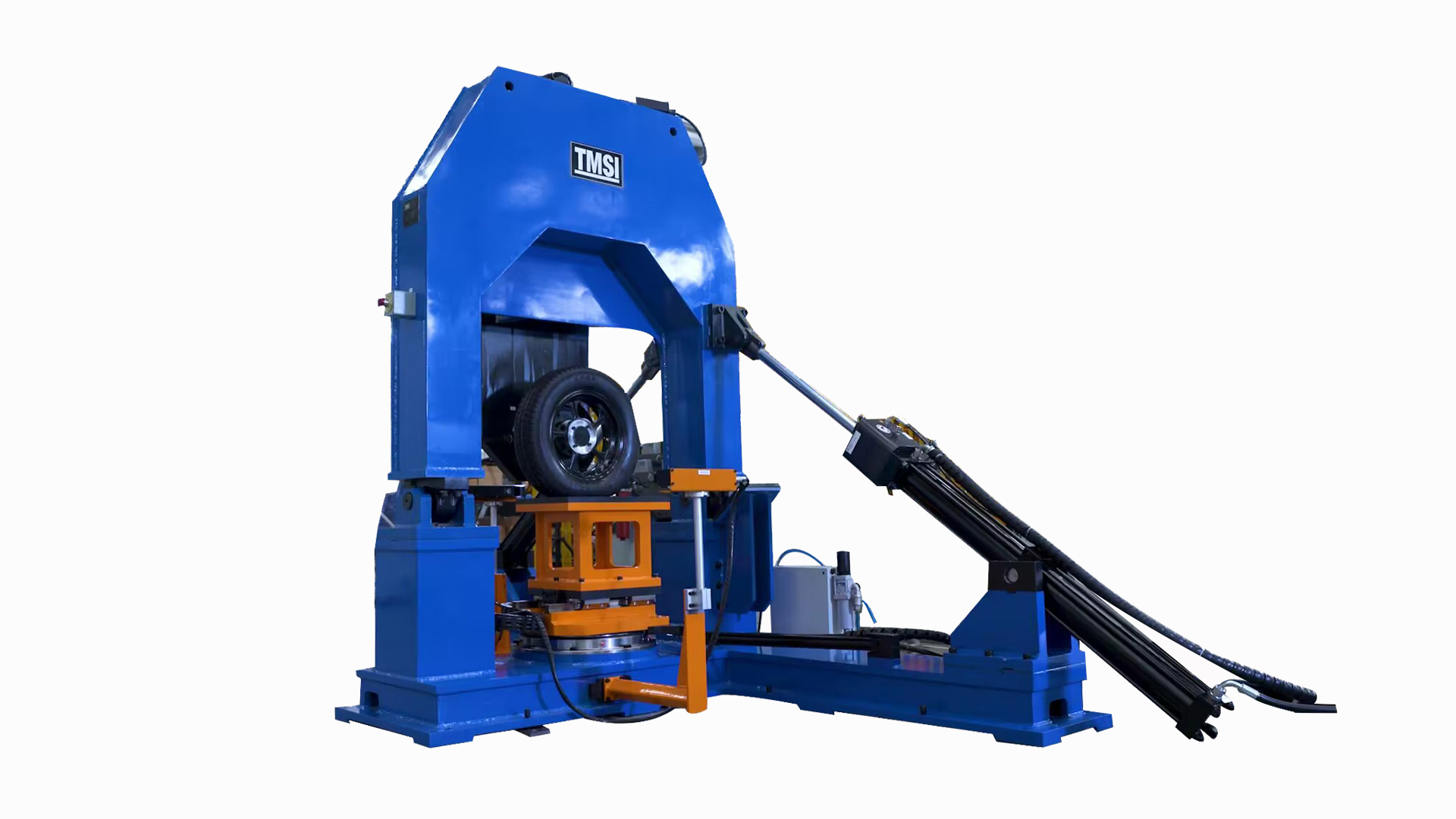

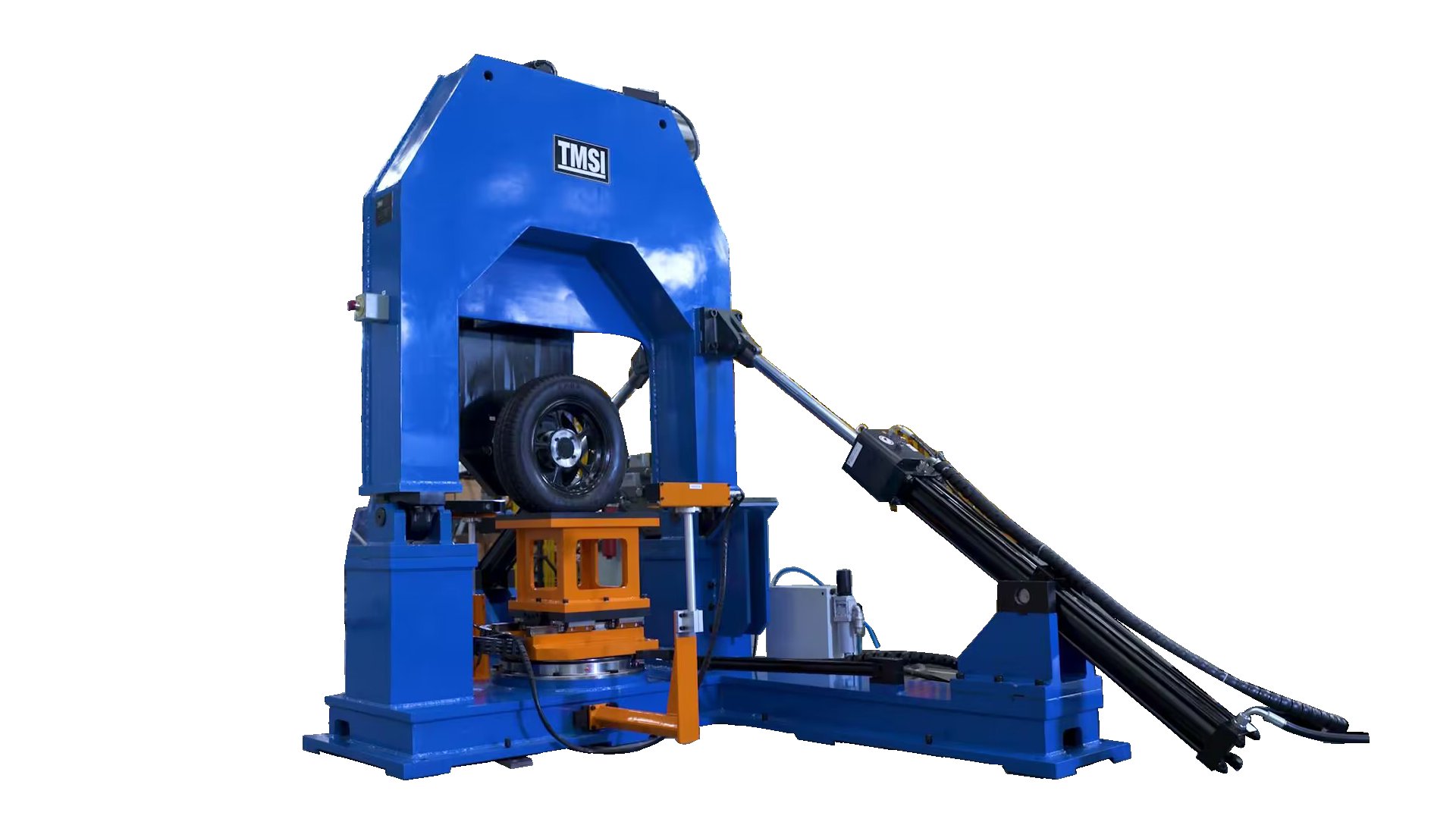

Motorcycle Tire Load Deflection Test Machine

The loading platform can be rotated 90 degrees
Plunger test function
Wheel-mounted sensor, more in line with actual working conditions
High-performance data acquisition system

Camber angle from -45° to +45°
Tire Footprint Test
Tire Profile Measurement
Plunger Energy Test

Motorcycle Tire Load and Deflection test machine applies a required load or deformation to a test specimen, while recording both the load and deflection data. The system consists of a mechanical load frame with servo-controlled motion.

Tests are controlled by the TMSI industrial computer control system （ServoTrac）, which is interconnected with the electrical control system to achieve full test automation, data acquisition, analysis, presentation and archival.

High Quality Tire Measurements

Test Items	Optional Functions
Radial Spring Rate	Bead Unseating Test
Lateral Spring Rate	Plunger Energy Test
Longitudinal Spring Rate	Footprint Test
Torsional Spring Rate	Tire Profile Measurement
Envelope Spring Rate	Resistance Test

Technical Specification

Basic Spec.	MC
Max.Tire Dia,mm	900
Max.Section Width,mm	200
Min. Bead Dia,in	5
Max.Fz, N	9800
Max.Fx, Fy, N	4900
Max.Mz,Nm	1000
Max.My, Nm	2500
Max.Mx, Nm	1500
Machine Dimension, mm	3850 x 1650 x 2200
