Tire Endurance Test Machine

Car,Light Truck&Motor CycleTire Endurance Test Machine

Two-station Model
Four-station Model

Truck Tire Endurance Test Machine

Two-station Model
Four-station Model

OTR & Agriculture Tire Endurance Test Machine

3M Tire Endurance Test Machine
5M Tire Endurance Test Machine

TBR, PCR, electric vehicles, motorcycles

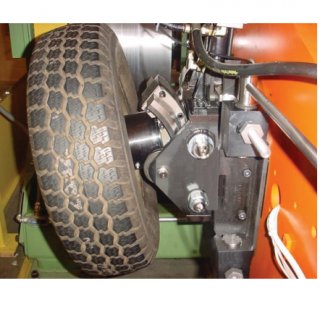

Configure camber and slip angle functions
Tire Failure Warning System
ServoTRAC™ control system, easy to operate and maintain

High-performance data acquisition system
Tire growth

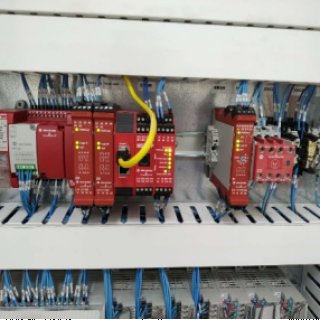

Unique safety system design to meet CE requirements
Two-station Model & Four-station Model

TMSI's Tire Endurance Test System is designed to incorporate one or two roadwheels and two or four test stations respectively via a single and highly triangulated stiff weldment. It provides the highest quality measurements available in tire endurance testing for both passenger and truck tires up to 350 km/h. It also performs loaded and rolling radius measurements, and measures RPK. In addition, the system can include options for dynamic steering capability and rolling resistance testing.

High Quality Tire Measurements

High Quality Tire Measurements	Options
Load	Slip/Camber Head
Speed	Rolling Resistance
Elapsed Distance	Infrared Temperature Sensor
Elapsed Time	Safety Cage
Loaded and Rolling Radius	CE Compliant

Technical Specification

Items	PCR & LTR	TBR	3M OTR&Agriculture	5M OTR&Agriculture
Roadwheel Drum
Diameter, mm	1,700	1,700	3,000	5,000
Width, mm	600	600	1,200	1,800
Max. Rotating Speed, km/h	350	200	120	80
Tire Size
Max. O.D, mm	1,620	1,700	2,500	4,000
Min. O.D, mm	450	500	800	1,600
Tire Load Rang
Max. Load, kg	5,000	10,000	20000	40000
Load Accuracy	± 0.1% F.S.	±0.1% F.S.	± 100N/ 1.5% FS	± 200N/ 1.5% FS
Tire Pressure
Range, kPa	689	1,350	/	/
Control Accuracy, kPa	±1.4	±1.4	/	/
Measurement Accuracy, kPa	±0.7	±0.7	/	/
